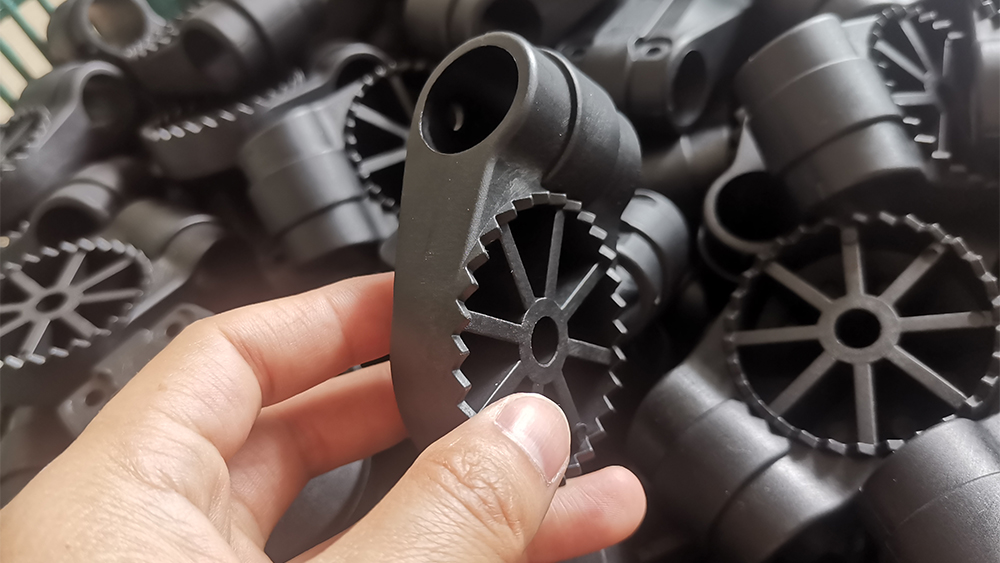

Garden Swing Plastic Fitting 30 Teeth

If you’re a homeowner with an aging swing, you know the struggle of finding replacement parts—especially when manufacturers stop producing them. Among the most sought-after parts is the 30-teeth canopy frame connector. But here’s the thing: simply knowing it’s “30 teeth” isn’t enough.

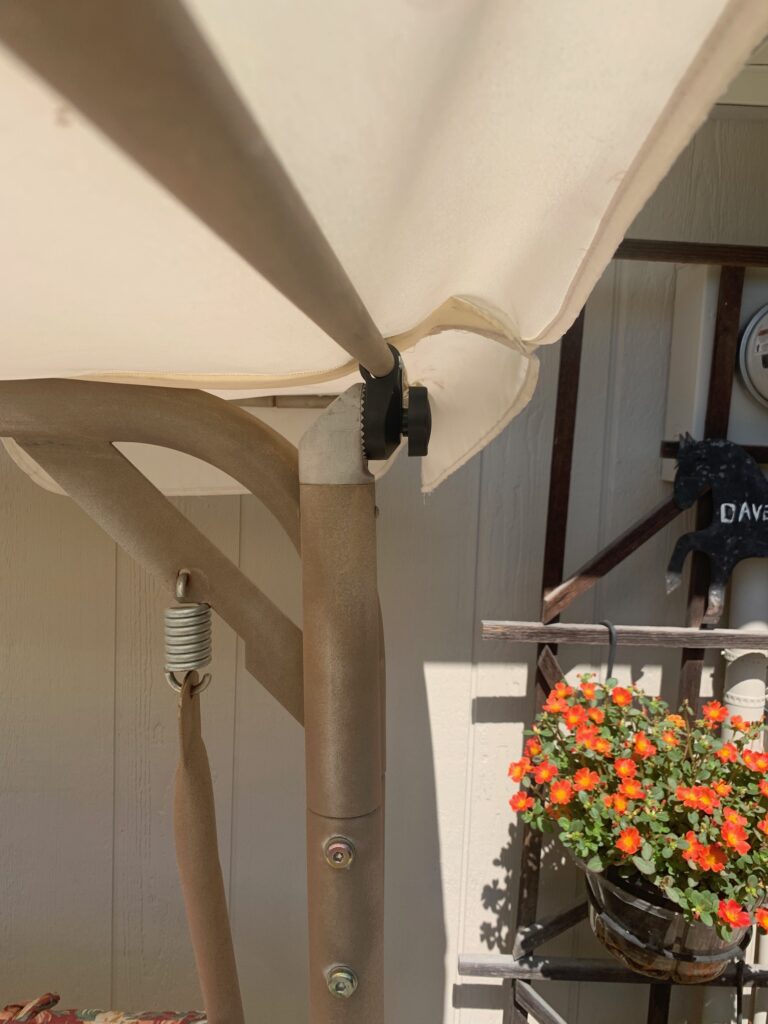

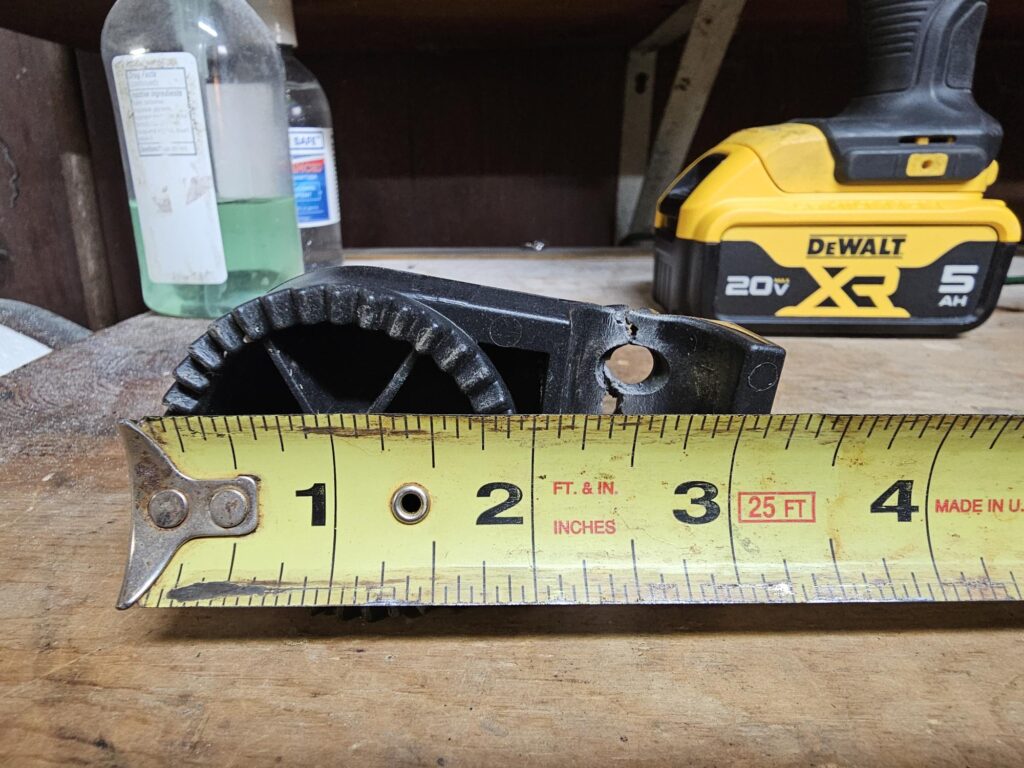

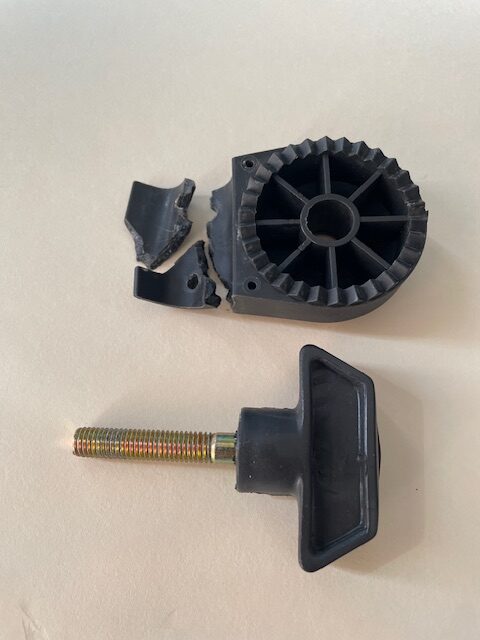

*Broken 30-teeth Canopy Frame Connector for Forest Hills Swing*

This guide will help you explore the different 30-teeth swing plastic fittings offered by Timyrimy and explain how to identify the correct match for your aging swing.

Timyrimy’s 30 Teeth Swing Plastic Fittings

Timyrimy offers several types of 30-teeth swing plastic fittings, each tailored to fit specific swing models and canopy frames. Let’s explore the details of each type to help you understand which might be right for your swing.

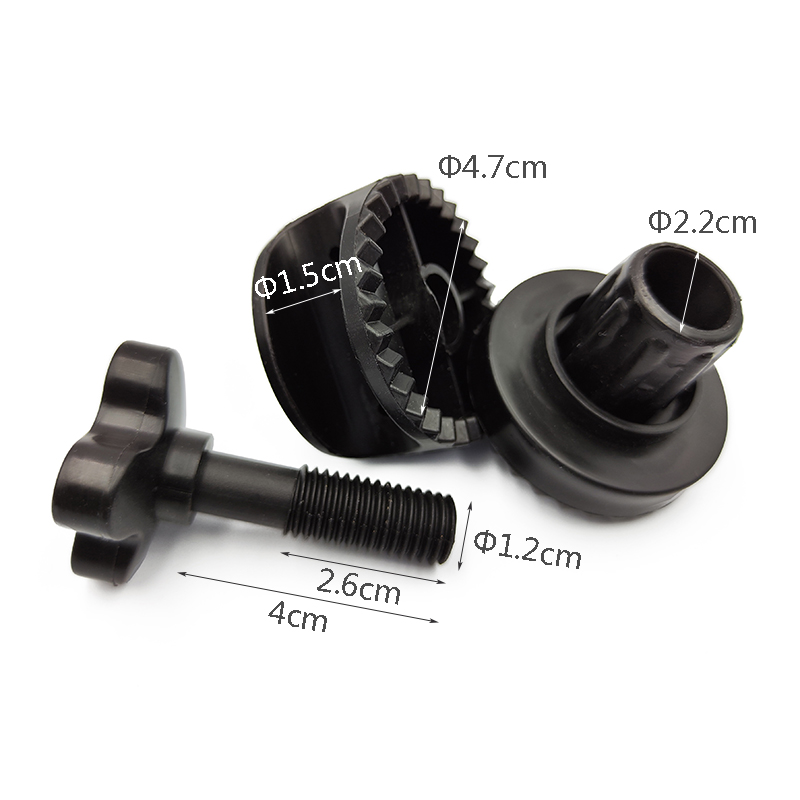

Timyrimy Type 1 Swing Plastic Fitting

Teeth#: 30
Teeth disc diameter: 47mm≈1.85 inches
Fits: Round canopy rods with a 15mm (0.59 inches) outer diameter
Material: nylon plastic

*Type 1 Swing Plastic Fitting Installed On Swing Frame*

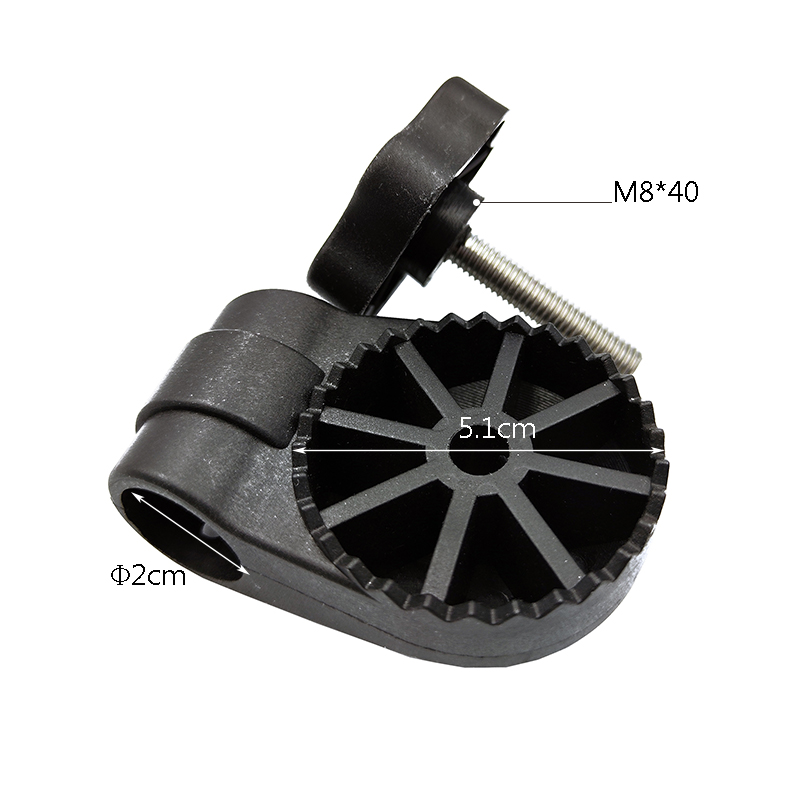

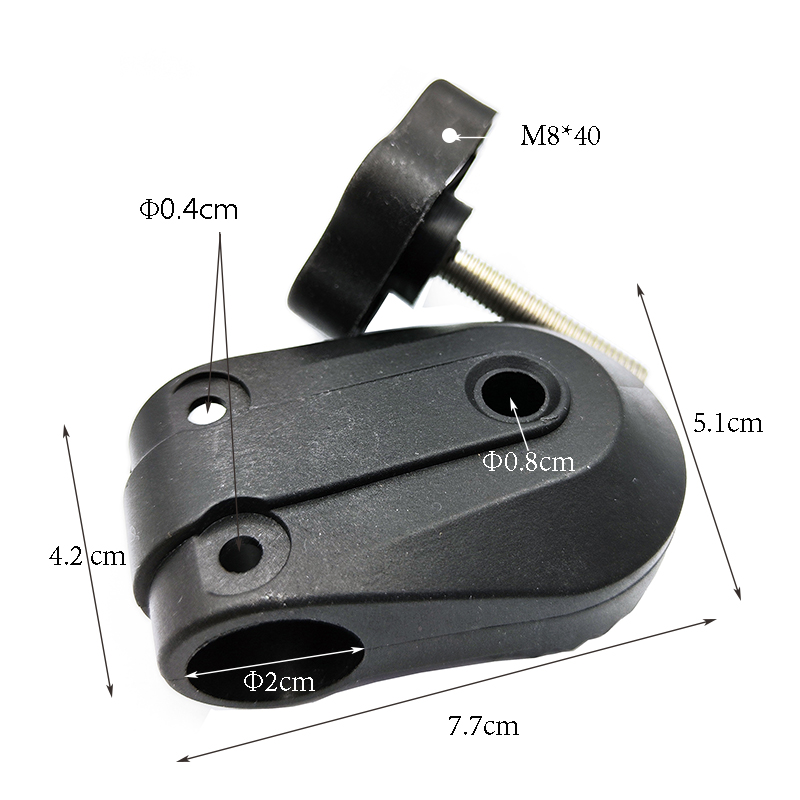

Timyrimy Type 2 Swing Plastic Fitting

Teeth#: 30
Teeth disc diameter: 51mm≈2 inches
Height: 77mm≈3 inches
Fits: Round rods up to 20mm (0.787 inches) in diameter
Material: nylon plastic
Important Note: The metal frame must be detachable (not welded) for this fitting.

Compatibility

This swing plastic fitting has been verified by homeowners to be compatible with the following canopy frame connector codes:

1800615004-01: fit swing Manufacturer’s Model Number RUS4180, or others with assembly instructions showing this code.
18000615004: fit swing Manufacturer’s Model Number RLS409A-WM, RTS422E, RUS426K-WM, RTS498J, RTS493E-WM, RTS493F-WM and such, or others with assembly instructions showing this code.

Timyrimy Type 4 Swing Plastic Fitting

Teeth#: 30
Teeth disc diameter: 48mm≈1.89inches
Height: 70mm ≈ 2.75inches
Fits: Round rods up to 15mm (0.59 inches)
Material: PVC plastic

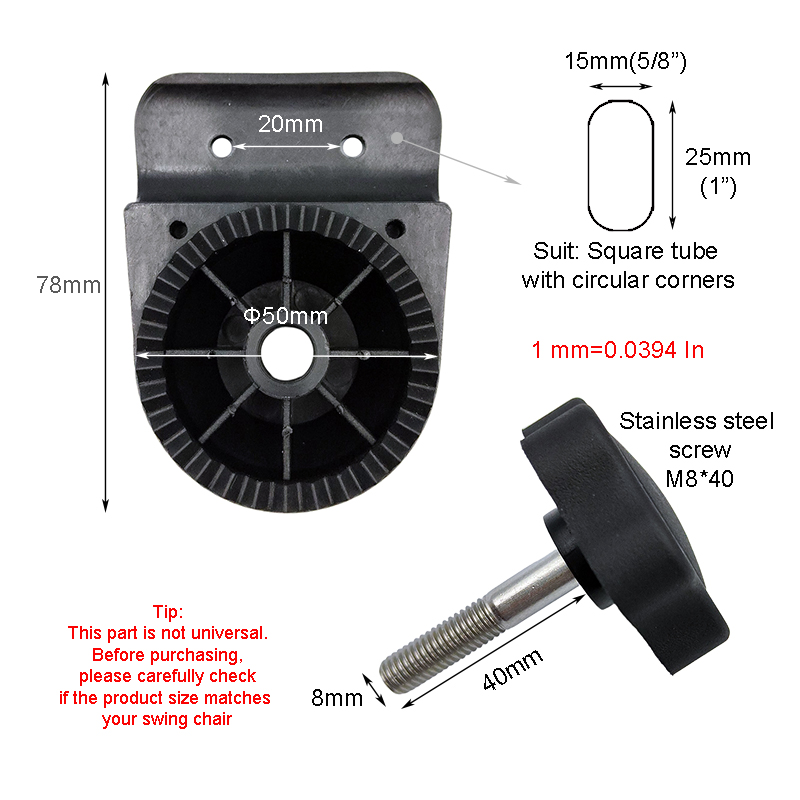

Timyrimy Type 5 Swing Plastic Fitting

Teeth#: 30
Teeth disc diameter: 50mm≈2 inches
Height: 78mm≈3 inches
Fits: Rectangular canopy rods measuring 13mm x 25mm (1/2” x 1”)
Material: nylon plastic

Compatibility

Verified compatibility with the following code:

18000626028: fit San Jose Three Seat Cushion Swing, Monterey Swing, or any model showing this code in the instructions.

*Type 5 Swing Plastic Fitting Installed On Swing Frame(rectangular canopy rods)*

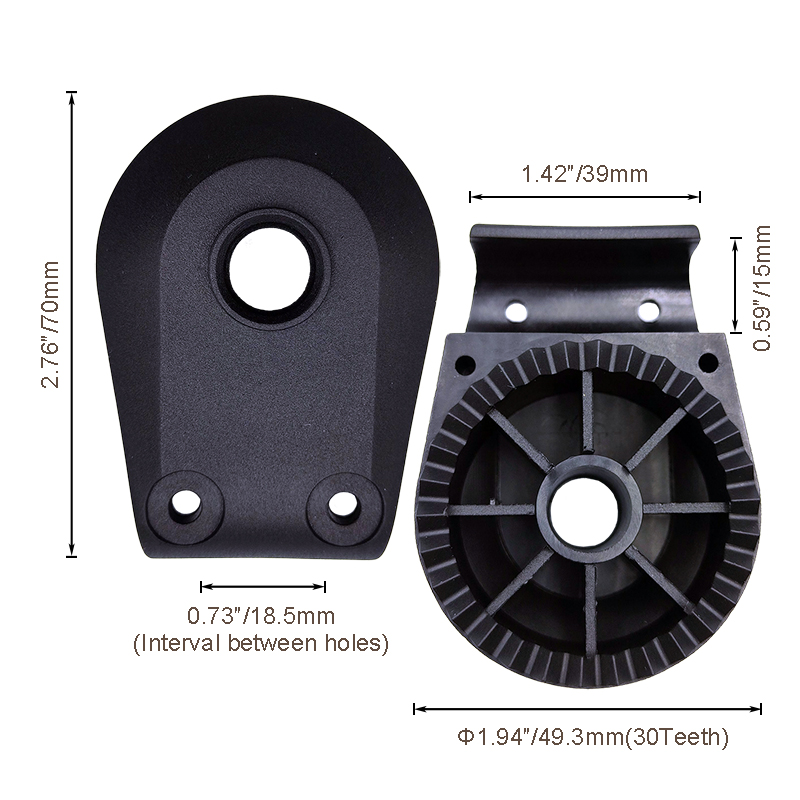

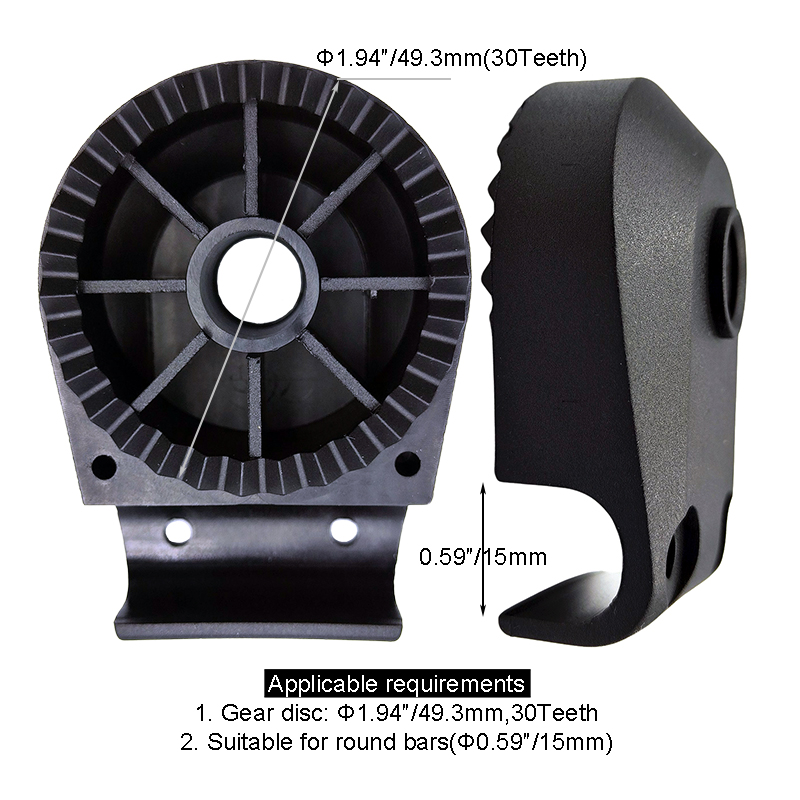

Timyrimy Type 10 Swing Plastic Fitting

Teeth#: 30
Teeth disc diameter: 49.3mm≈1.94”
Height: 70mm≈2.76”
Compatible canopy rod size: Round canopy rods with an outer diameter ≤ 15mm (0.59 inches)
Material: nylon plastic

canopy frame connector for forest hills swing4

canopy frame connector for forest hills swing3

Compatibility

Verified to fit swings with the canopy frame connector code:

18020605001: fit swing Manufacturer’s Model Number RUS498M, RUS498W, RUS498G, RUS498X, and any other swing with the same code.

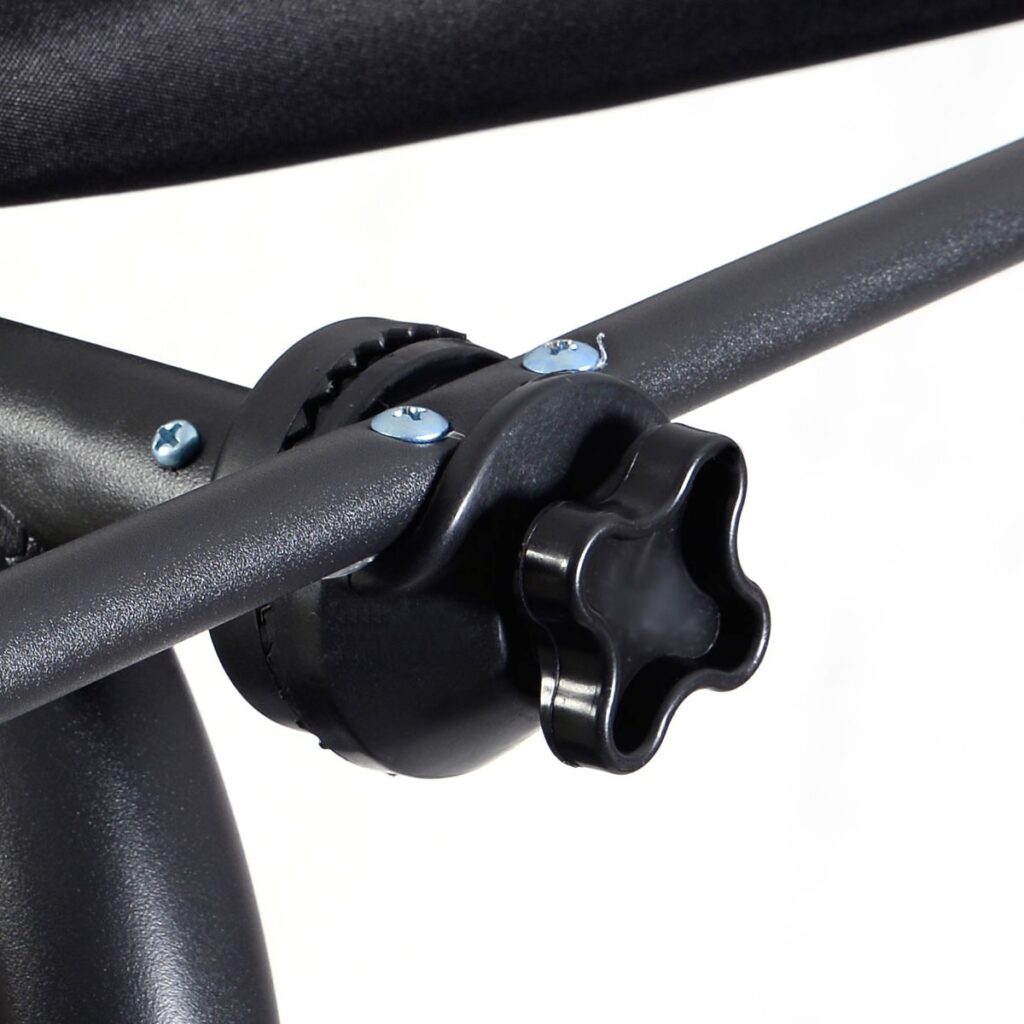

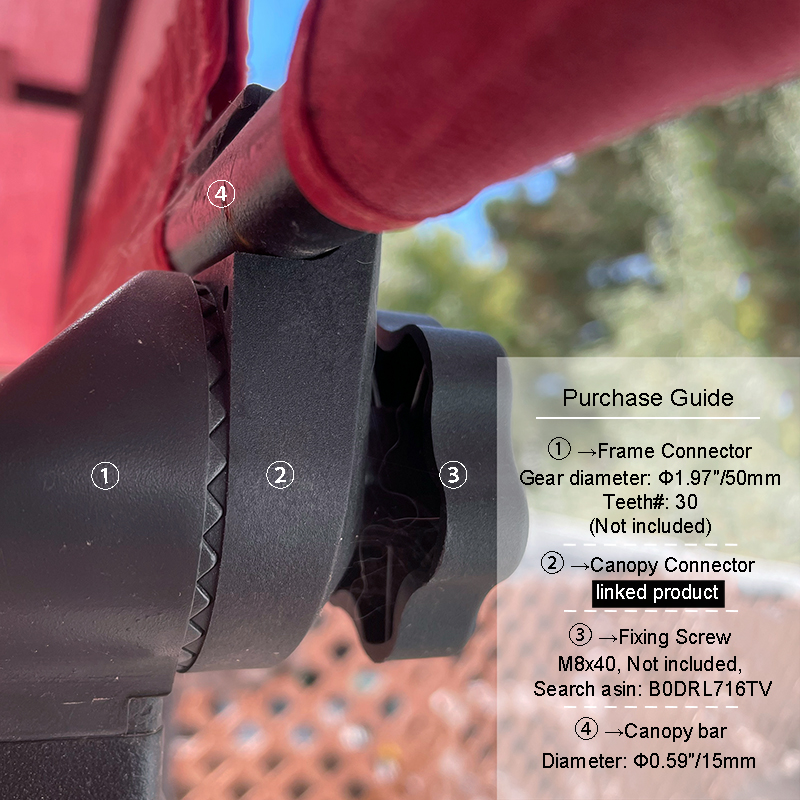

canopy frame connector for forest hills swing5 — *Type 10 Swing Plastic Fitting Installed On Swing Frame(Round Canopy Rod)*

Need a Different 30-teeth Fitting?

If your aging swing uses a 30-teeth plastic fitting that doesn’t match any of Timyrimy’s current options, don’t worry! We offer a trade-in program. Just send us pictures of your swing frame and the broken connector to info@timyrimy.com, and we’ll help you find a compatible solution.

How to Choose the Right Swing Plastic Fitting?

Timyrimy fittings usually specify the swing brands and models they work with, many of which are popular at major U.S. retailers. To make sure you get the right part, compare your swing’s brand, model number, or assembly code with our listings. If you can’t find that information, here are some tips:

Compare Your Original Broken Canopy Bracket

Start by examining your broken or worn-out fitting. Take note of the following features:

Number of teeth: Ensure your new fitting has the same number of teeth (30 teeth) to ensure compatibility.
Teeth disc diameter: Match the size of the teeth disc with your existing fitting.

Check Your Existing Swing Frame Structure

Take a look at your swing’s canopy frame. Is it welded or detachable? This matters because the fitting must connect properly to your swing’s frame.

Measure the Connector Size on Your Frame

Check the shape and size of your swing canopy frame. Whether it’s round or rectangular, the fitting needs to match both the shape and dimensions.

Verify the Thread Size

Make sure the internal thread size of the plastic connector matches the screw that fixes the canopy in place. This is a crucial step to ensure a snug fit.
